EZ50 Pull Line Conduit Blower

The Conduit Pull Line Blower EZ50 by Zeitler is used to feed a special pull line promptly and efficiently into conduits of Ø 18 to 50 mm (internal diameter) for electrical installation in private construction.

Easy to apply even in buckled conduits, junction boxes, sockets and plugs.

MADE IN SWITZERLAND

Play Video

QUICK FACTS

Blow or suck pull line without compressor

For all commercial pipe work
(internal diameter from 18 to 50 mm)

Appropriate for flexible conduits

Installations in the range of private, office and industrial buildings

Huge time saving in cable feeding

Feeding of several hundred meters

Lightweight and compact

Excellent accessibility, even in confined spaces

Easy to handle

Double function (blowing and suction mode)

Perfect and strong to solve conduit pull line blowing problems

Suitable in any car boot

Power supply versions
115Volt/60Hz or 230V/50Hz

Perfect value for money

QUICK SETUP

Apply line brake

Fit joint/nozzle appropriate to internal conduit diameter

Firstly blow through the conduit with air, check if penetrable tube/correct tube

Make either a loop or fix a bead to the pull line

Release line brake

Blow conduit pull line in without interrupting, observe uncoiling in cylinder

Release switch and close nozzle with a finger

Apply line brake and cut off pull line

Fix wire/s to the pull line and start pulling

Attach cable to pull line

SUCTION MODE

Problems with for example kinked conduits can be solved by switching to suction mode, sucking the pull line from opposite end

PULL LINE Conduit BLOWER

Play Video

BLOWING PULL LINE INTO corrugated ducts

Play Video
Play Video
Play Video

WHAT IS INCLUDED?

EZ50 - Pull Line Conduit Blower - READY TO GO in a strong plastic box
EZ50 Conduit Pull Line Blower by Zeitler

EZ50 Pull Line Conduit Blower

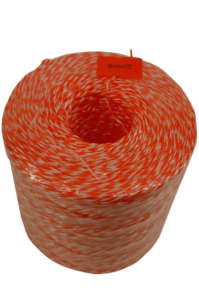

3 conduit pull line rolls (Ø 1 mm, tensile strength approx 24 kg, length approx. 900 m)

1 Suction device

1 components set A: 2 joints ½" reducer 19/12 mm plus nozzle int. Ø 9,5 mm

1 components set B: 3 joints ¾" nozzle int. Ø 16 mm plus nozzle int. Ø 19 mm

1 special nozzle black, for int. Ø from 25 to 50 mm

1 special nozzle with 90° angle, Ø ext. 12 mm

3 beads (round) of Ø 11mm

3 beads (round) of Ø 13mm

3 beads (round) of Ø 16mm

1 Parachute (Ø 30-60 mm)

1 Shuttle complete set dimension free of choice from 20-50 mm

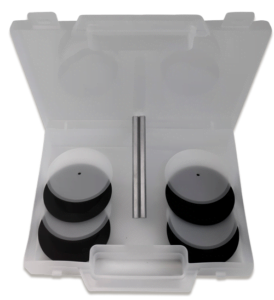

1 Box with Shuttle assembly material

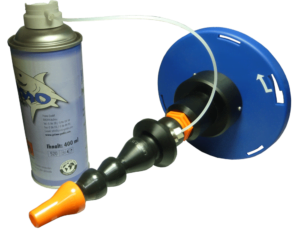

1 Spray nozzle

1 Operating Manual

Request a personalized Price

EZ50 Pull Line Conduit Blower

Delivered-at-Place (DAP) except import local tax

MADE IN SWITZERLAND

Delivered-at-Place (DAP) except import local tax

FREE WORLDWIDE SHIPPING

Zeitler
Pull Line Blower

EZ15

Conduit Pull Line Blower

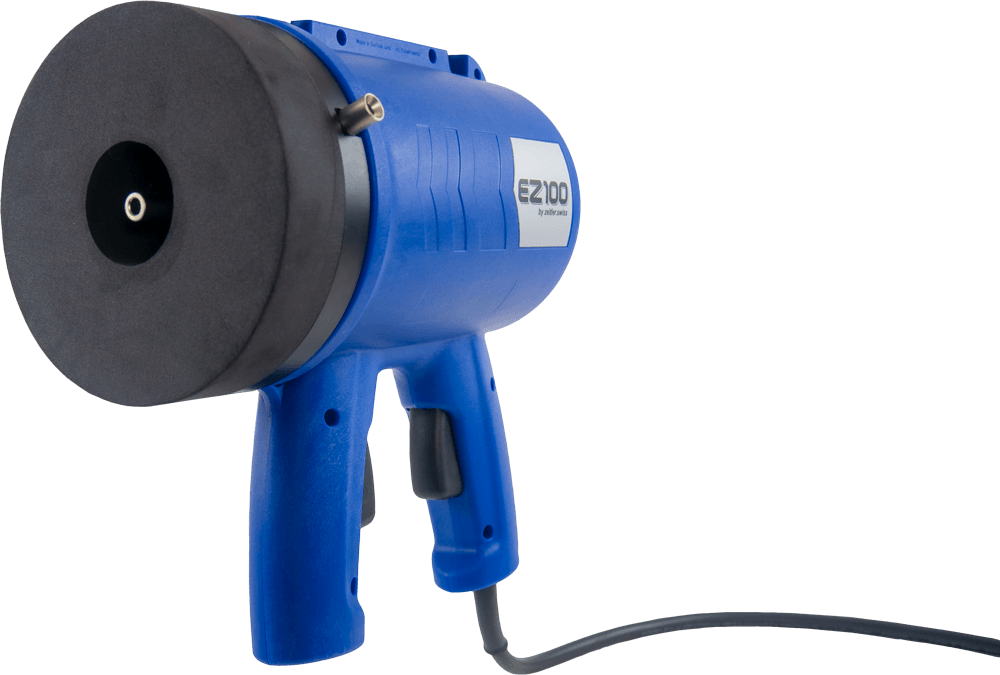

EZ100
